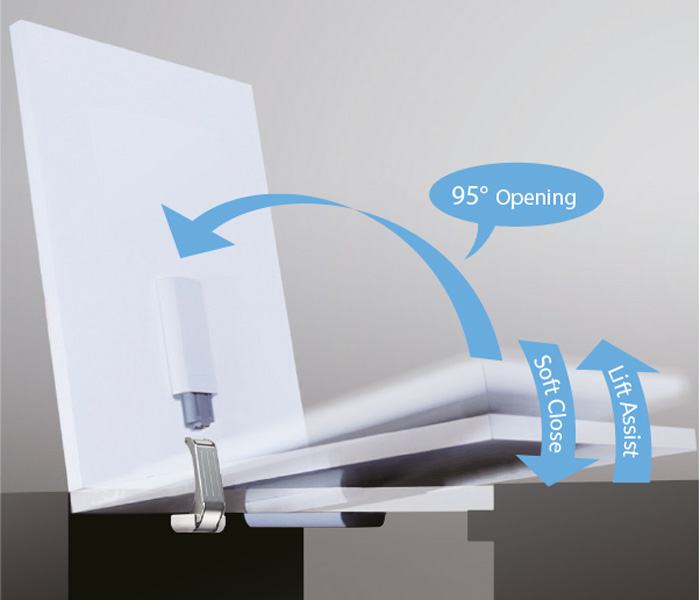

The damper works just before flap closes, preventing it from slamming shut and pinching fingers. The lift-assist mechanism helps the user to lift the countertop and holds the door open at 95°.
• Opening angle: 95°
• Soft-close
• Can be retrofitted to existing counters
• Panel thickness: 15 to 25 mm (9/16" to 1")
• Max. Torque per piece: 137.7 to 163.2 kg/cm (119.7 to 141.9 lbs/in)
Piano hinge not included
Torque calculation (lbs-inch)
Door height (inches) x 0.5 x weight (lbs).
