SysLine S hardware set with soft-closing and soft-opening

SCM-HSYKITD

The SysLine S system is a sliding door fitting solution developed by Hettich for furniture with inset sliding doors. It is a highly integrated system mounted at the top, allowing the doors to slide horizontally with smooth and quiet movement, while remaining almost invisible from the outside thanks to the absence of visible bottom profiles. It is suitable for wooden doors or aluminum frame doors and features precise, tool-free height adjustment, ensuring optimal use of the cabinet’s interior space.

SysLine S offers several functional and aesthetic advantages: its operation is extremely smooth and fluid, making door opening and closing effortless while significantly reducing noise. The Silent System option, integrated into the fitting, provides soft and silent self-closing, enhancing everyday user comfort. In addition, because all the technology is concealed in the top panel, the system delivers a clean, high-end appearance, maximizes access to storage, and frees up space at the bottom of the cabinet, contributing to improved ergonomics and a refined overall design.

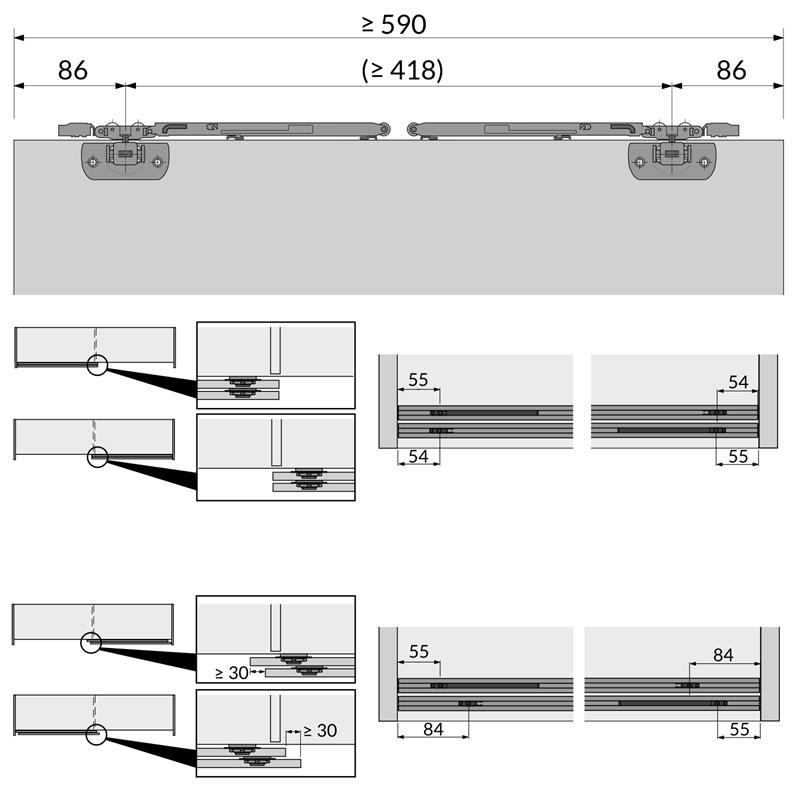

• Minimum door width : 590 mm (23 3/16")
• Maximum weight per door : 15 kg (33 lb)
• Door thickness : 16 to 19 mm (5/8" to 3/4")
• Set contains components for a 2-door cabinet
• Closing and opening sliding doors quietly and gently
• With integrated, tool-less height adjustment

Set comprises:
• 4 running components with Silent System
• 4 activators for Silent System
• 4 adapters for wooden doors
• 2 bottom guide components for wooden doors
• 2 bottom guide components for aluminium framed doors
• 2 door stops / spacers
