Extractable Swing Corner shelves system grey - left opening

RCM-H101071P

The shelf extractable system for blind-corners is an essential accessory to equip a kitchen and increase the storage space. Its fluid movement makes it possible to extract the shelves from the bottom of the cabinet. it is also equipped with anti slip mats for the shelves, and comes with a soft close mechanism.

• Set of 2 shelves
• Integrated dampers
• Opening: Left side

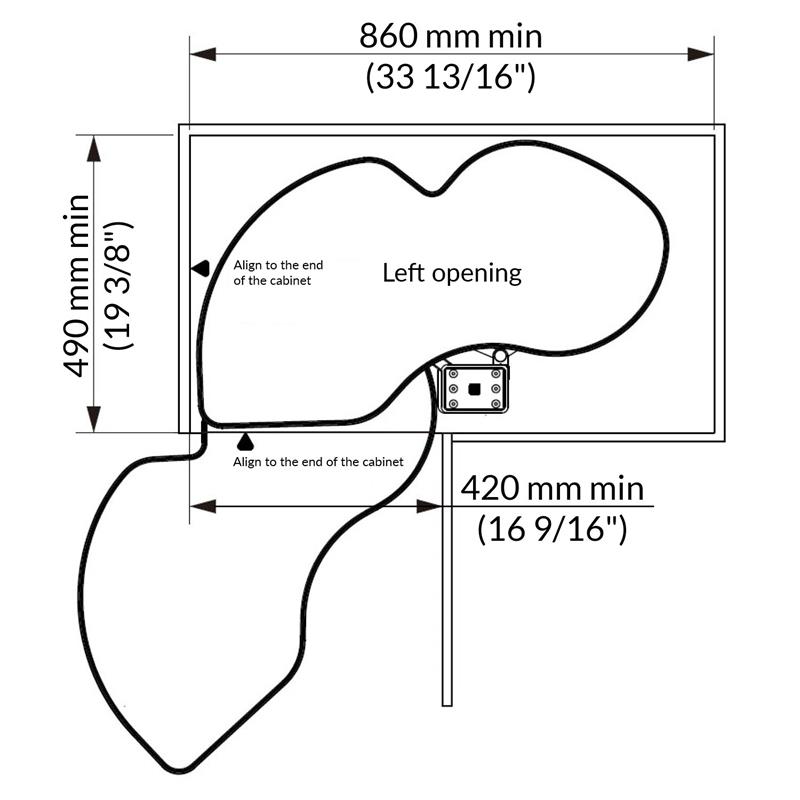

• Minimum installation depth: 490 mm (19 3/8'')

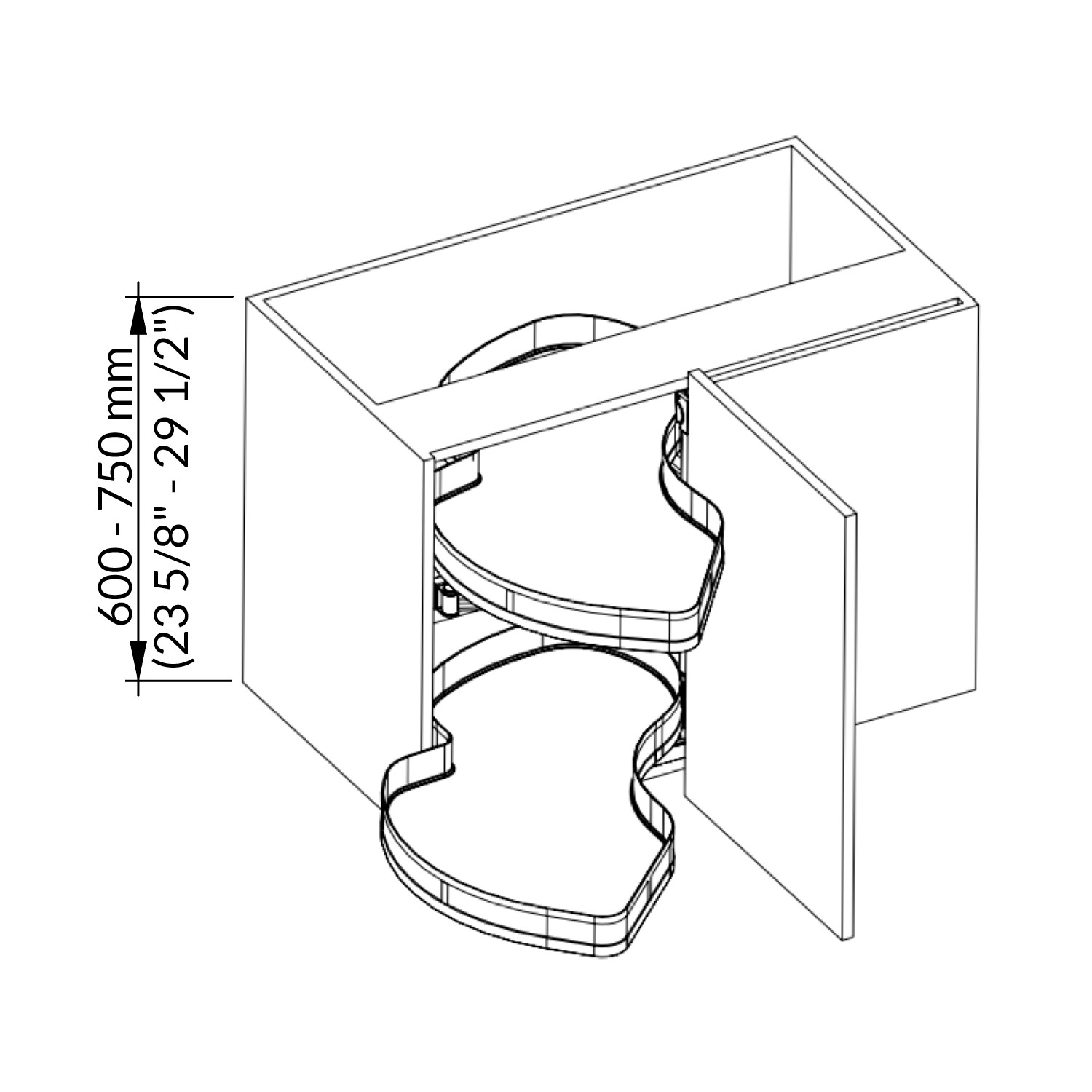

• Minimum cabinet height : 600 mm (23 5/8''
• Maximum cabinet height : 750 mm (29 1/2'')
• Minimum installation width: 860 mm (33 13/16'')
• Minimum width of the door opening: 420 mm (16 9/16'')
• Lateral clearance: 155.5 mm (6 1/8")
• Load capacity: 15 kg (33 lbs) per shelf
• Shelves finish: Grey - anti-slip surface
• Finished lateral fences: Grey
• Individual shelf height adjustment
• Not reversible

Ideal for storing less often used items, the system's "s" movement allows the shelves to come out almost completely for easy access. The height of the shelves is adjustable, thus optimizing its use.
