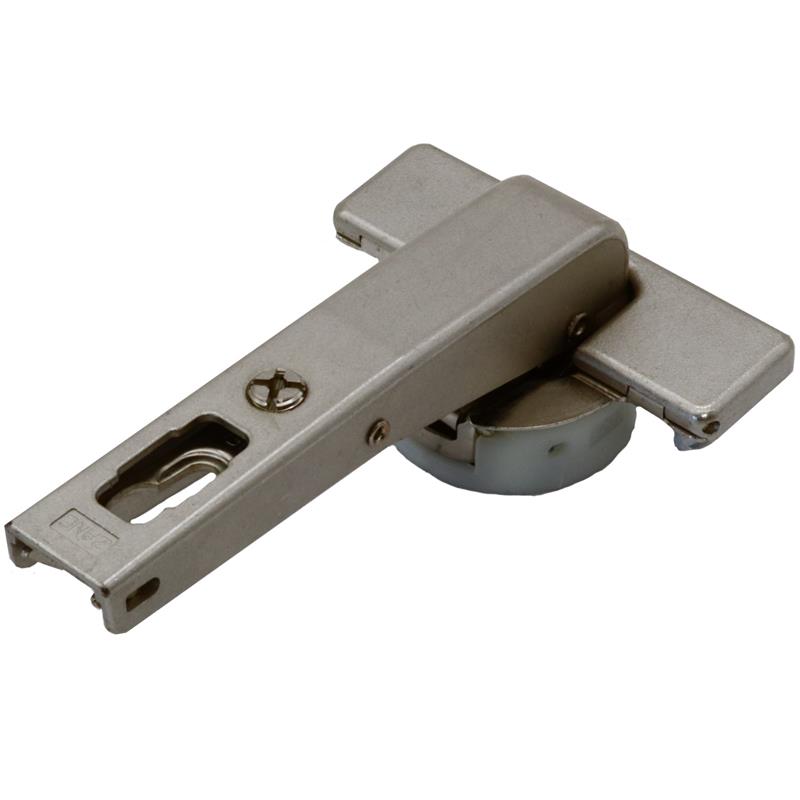

The innovative soft-close technology guarantees excellent performances to the complete range of hinges.
• Application: blind corner
• Opening angle: 110°
• With damper
• With closing spring
• Fixing type: toolless

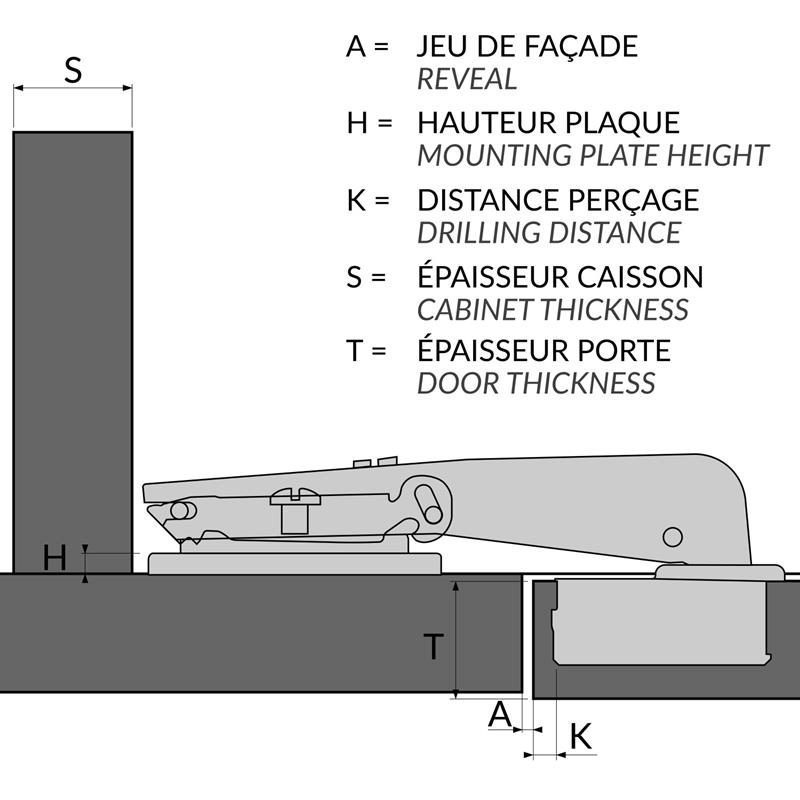

• Drilling pattern: 45 / 9,5 mm
• Cup drilling diameter: 35 mm
• Drilling depth: 13,5 mm
• Cup distance: 3 to 6 mm
• Maximum door thickness: 24 mm
• Vertical adjustment: +/- 2 mm
• Lateral adjustment: - 1,5 mm à + 4,5 mm
• Depth adjustment: - 0,5 mm à + 2,8 mm
• Finish : nickel-plated
