Reversible anthracite Flymoon 40/45 blind corner mechanism

CMF-VSUP3A

The Flymoon shelf extractable system for blind-corners is an essential accessory to equip a kitchen and increase the storage space. Its fluid movement makes it possible to extract the shelves from the bottom of the cabinet. Several options are available in this range of corner storage to meet different design needs.

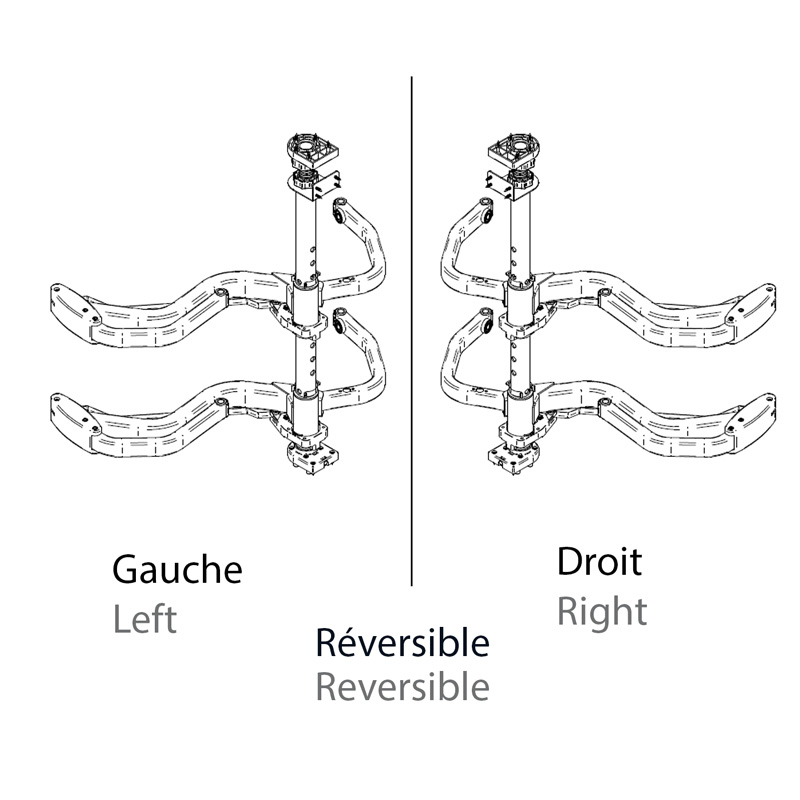

• Set for 2 shelves • Compatible with optionnal soft-close • Opening: right or left side • Minimum installation depth: 489 mm (19 1/4 ") • Minimum installation width: 860 mm (33 7/8") • Minimum width of the door opening: 430 mm (17 ") • Installation height: 680mm (26 3/4'') +/- 25mm (1'') • Lateral clearance: 199 mm (7 7/8 ") • Load capacity: 20 kg per shelf • Finish: anthracite • Individual shelf height adjustment • Reversible • Compatible only with Flymoon 40 or 45 shelves
The individual movement of the shelves will guarantee to the user an optimal access to the entire surface. Its load capacity of 20 kg per shelf allows storage of a large number of kitchen accessories while keeping them stable thanks to the anti-slip surface of the bottom. The available colors, white / chrome and anthracite, will match perfectly with the other kitchen equipment such as drawers or cutlery dividers.
