Shelf lift-assist LAD-ST medium

BRA-LADSM

Lift-assist damper for counter tops in restaurants, bars and reception desks. Can also be used in residential areas where it could be usefull. This mechanism can easily be installed to existing counters without processing.

• Opening angle: 95° • Soft-close • Can be retrofitted to existing counters • Panel thickness: 15 to 25 mm (9/16" to 1") • Max. Torque per piece: 107.1 to 137.7 kg/cm (93.1 to 119.7 lbs/in) Piano hinge not included Torque calculation (lbs-inch) Door height (inches) x 0.5 x weight (lbs).

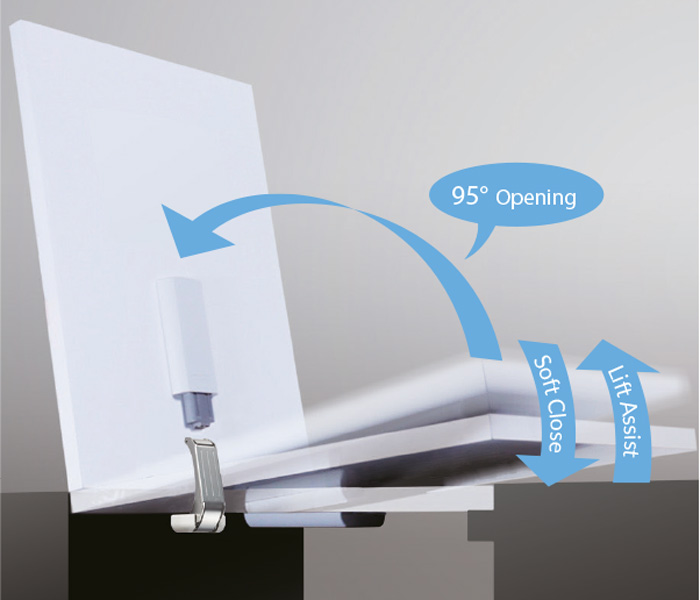

The damper works just before flap closes, preventing it from slamming shut and pinching fingers. The lift-assist mechanism helps the user to lift the countertop and holds the door open at 95°.
